Hydraulic Hoses - Future Divine

Product Overview

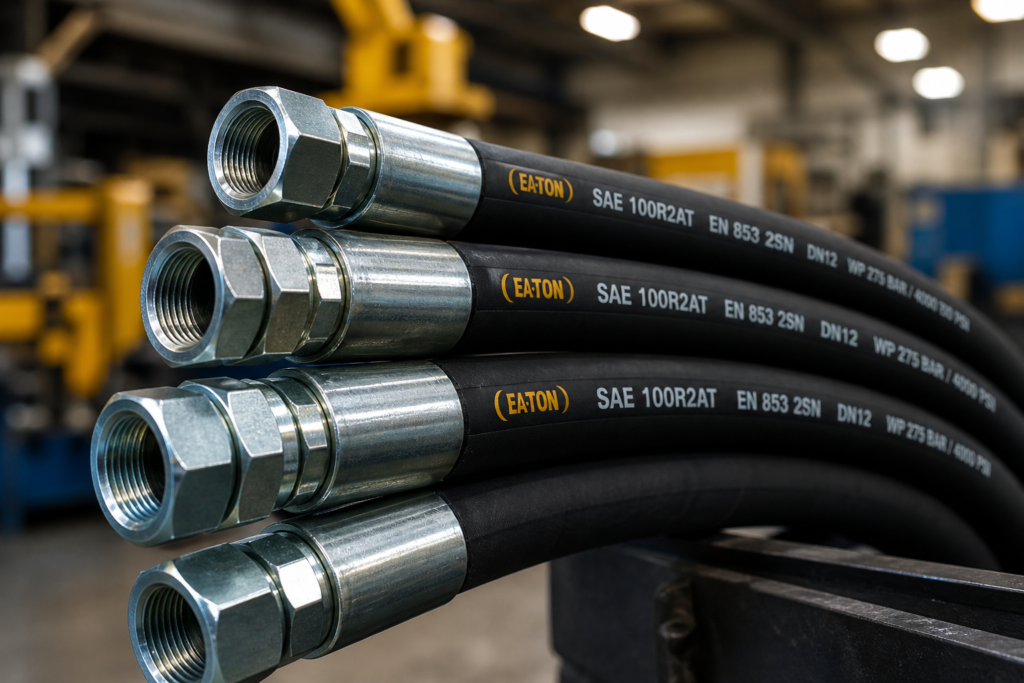

Hydraulic Hoses: A high-resolution, close-up shot of heavy-duty, reinforced black hydraulic hoses with steel fittings, set against an industrial workshop background with soft bokeh.




            Hose Type
            Reinforcement
            Max Working Pressure
            Temp. Range
            Application




            SAE 100R1
            1-Wire Steel Braid
            575 – 3,250 PSI
            -40°C to +100°C
            Medium pressure hydraulic lines


            SAE 100R2
            2-Wire Steel Braid
            1,150 – 6,000 PSI
            -40°C to +100°C
            High-pressure mobile equipment


            SAE 100R4
            Textile & Spiral Wire
            35 – 300 PSI
            -40°C to +100°C
            Suction and return lines


            SAE 100R12
            4-Wire Steel Spiral
            2,500 – 4,000 PSI
            -40°C to +121°C
            Heavy-duty high-impulse service


            SAE 100R13
            Multiple Steel Spirals
            Up to 5,000 PSI
            -40°C to +121°C
            Severe pressure spikes

Hose Type	Reinforcement	Max Working Pressure	Temp. Range	Application
SAE 100R1	1-Wire Steel Braid	575 – 3,250 PSI	-40°C to +100°C	Medium pressure hydraulic lines
SAE 100R2	2-Wire Steel Braid	1,150 – 6,000 PSI	-40°C to +100°C	High-pressure mobile equipment
SAE 100R4	Textile & Spiral Wire	35 – 300 PSI	-40°C to +100°C	Suction and return lines
SAE 100R12	4-Wire Steel Spiral	2,500 – 4,000 PSI	-40°C to +121°C	Heavy-duty high-impulse service
SAE 100R13	Multiple Steel Spirals	Up to 5,000 PSI	-40°C to +121°C	Severe pressure spikes
